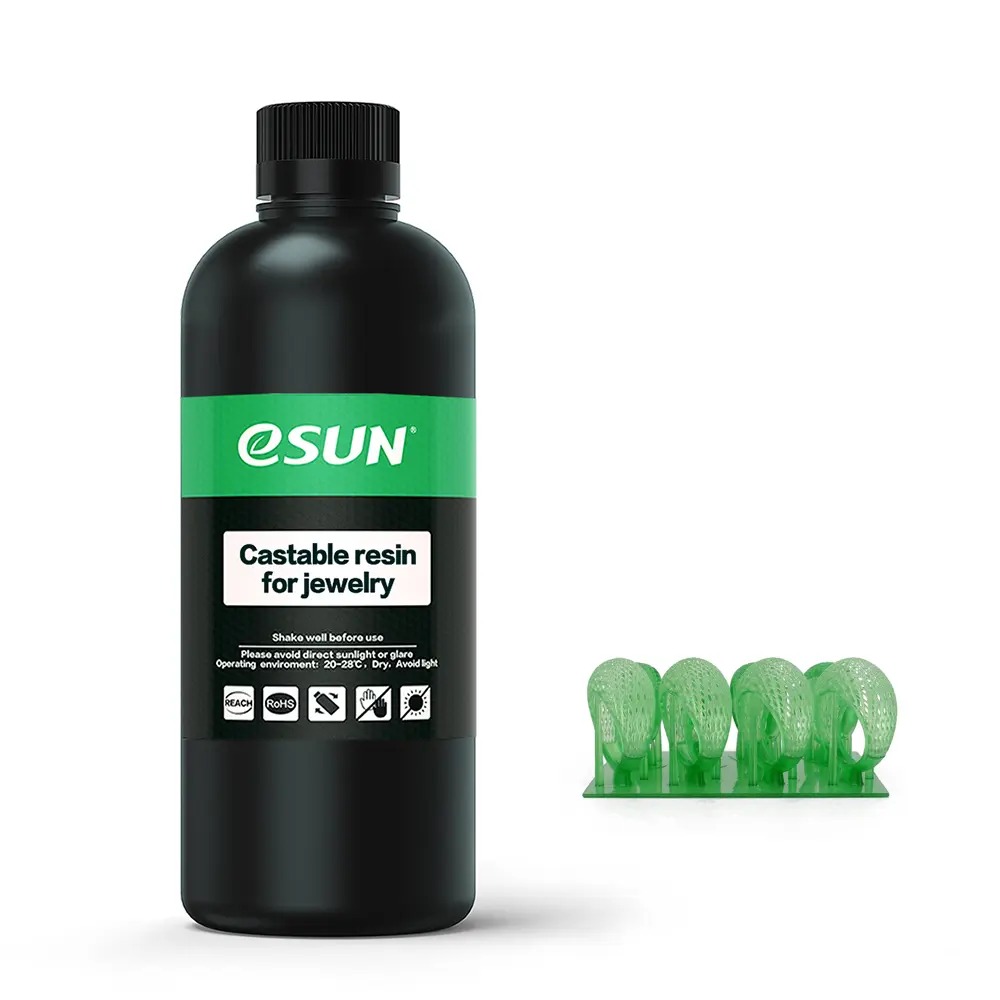

Castable resin for Jewelry Green JC100 1kg bottle
Condition: New
2 in stock
| ELBER Part Number | |
| Manufacturer | |
| Descriptions | The resin developed for jewelry casting; very little burning ash and residues, good casting performance, can produce high-quality jewelry pieces; high precision, the details of the fine and complex models in the jewelry industry are clearly visible; used for the loss of gold, silver and copper ornaments Wax casting. |
Notes
1. Shake well before printing
2. Jewelry casting resin needs to be fully cured to achieve the best mechanical strength. It is recommended that the surface is cured until it is not sticky.
Highlights
Features
High precision
The resin developed for jewelry casting; very little burning ash and residues, good casting performance, can produce high-quality jewelry pieces; high precision, the details of the fine and complex models in the jewelry industry are clearly visible; used for the loss of gold, silver and copper ornaments Wax casting.
Weight
1000g
Package Weight
50g
Package Length
50mm
Package Width
50mm
Package Height
240mm
Resin Type
Castable
colour
Green
Tensile Strength
42 MPa
Flexural Strength
49 MPa
Heat Distortion Temp
N/A °C
Shore Hardness
60
Elongation at break
15 %
Shrinkage
N/A %
Resin Toughness
7
Resin Strength
8
Resin Accuracy
8
Resin Print Speed
4
Information on technical characteristics, the delivery set, the country of manufacture, and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
| 3D PRINTING PHOTOPOLYMER RESIN Properties Table | |
|---|---|
| 3D PRINTING PHOTOPOLYMER RESIN | Castable resin For Jewelry |
| Viscosity(mPa·s) | 100-150 |
| Density(g/cm3) | 1.05-1.12 |
| Tensile Strength(MPa) | 42-62 |
| Elongation at Break(%) | 11-20 |
| Flexural Strength(MPa) | 49-58 |
| Impact Strength(J/m) | 44-49 |
| Tearing Strength(GPa) | / |
| Heat Distortion Temp(℃) | / |
| Hardness(Shore D) | 60 |
| Grades (out of 10) | |
| Strength（S） | 8 |
| Toughness（F） | 7 |
| Forming（P） | 9 |
| Accuracy（S） | 8 |
| Speed （A） | 4 |
